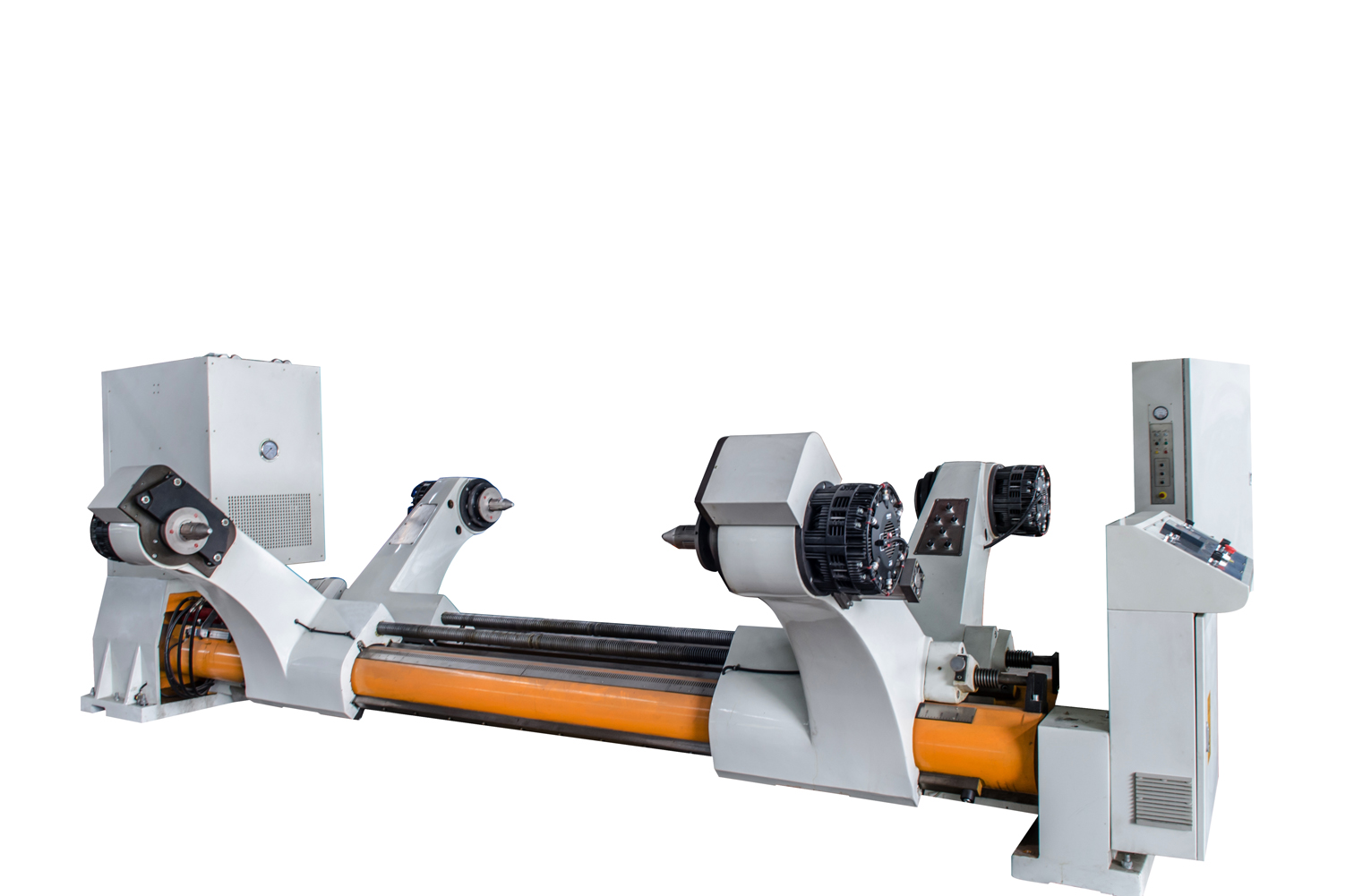

Features
- Manufactured under license using USA Langston technology.
- Symmetric structure with two paper reels loading capacity, allowing paper roll change without downtime
- Hydraulic lifting and lowering
- Symmetric clamping and unclamping based on centre line with lead screws driven by hydraulic motor.
- Lead screws with clutch device, allowing offset running of paper.
- Domestic Multi-cylinder pneumatic brake for web tension
- Clamping arm can automatically open to suitable width to meet the reel length with help of feeding control system, improving reel feeding efficiency.
- Automation tension control with automatic reel feeding system.
- Expansion chuck.
Technical Data
- Max. paper roll diameter: Φ1580mm
- Min. paper roll diameter: Φ300mm
- Max. loading capacity at each side: 4 tons
