Features

• Manufactured under license using LANGSTON (USA technology)

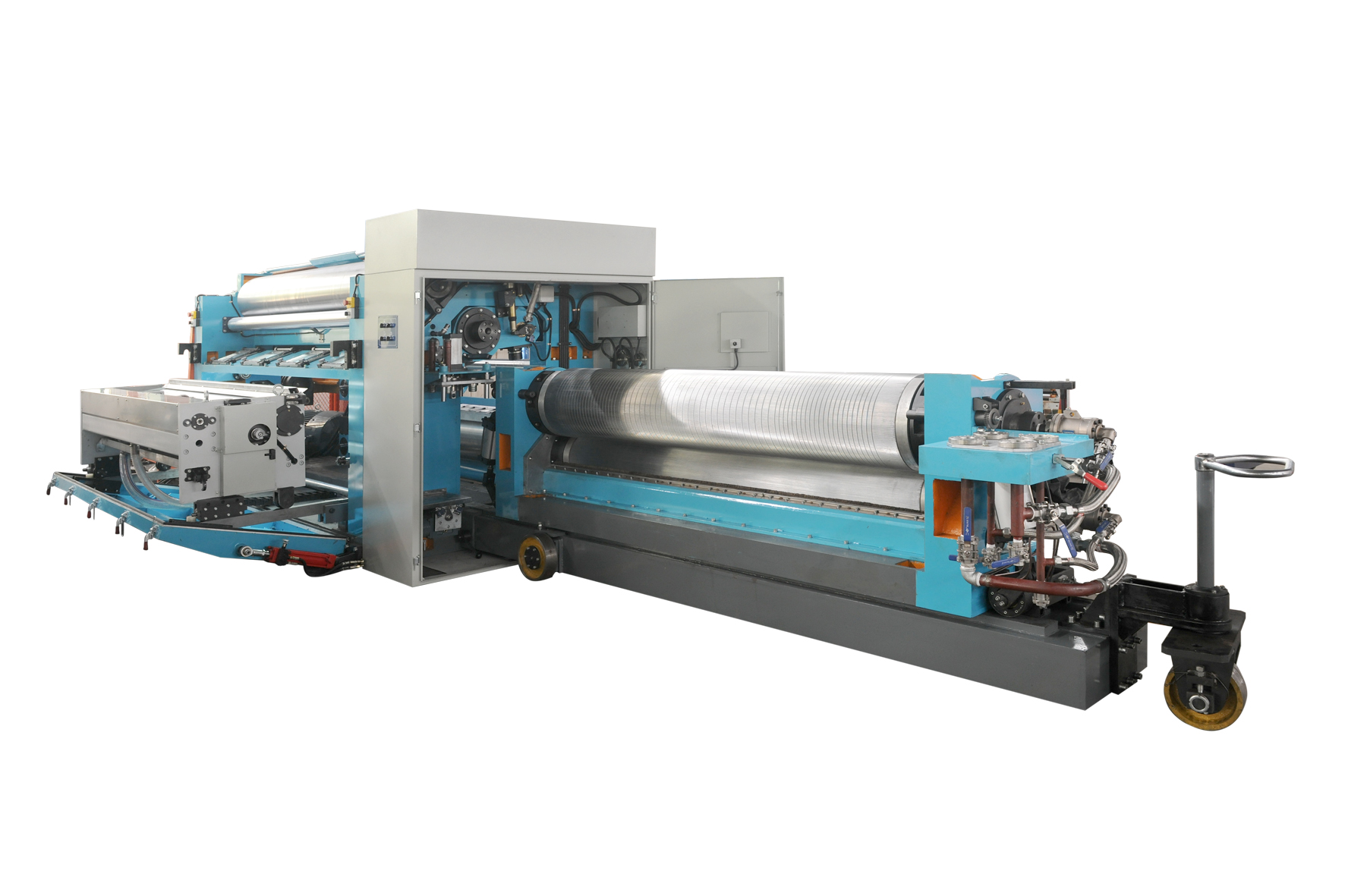

• Quick-roll-change cartridge device, enhances stability and reduces roll change time
• Pneumatic self-closed steam joint connecting and hydraulic locking for cartridge.
• Vibration is reduced due to lower-located corrugating roll, which improves running stability.
• Positive pressure fingerless design, reducing heating loss and simplifying maintenance.
• Big diameters rolls ensure formation strength at high speed, improving machine stability and extending the roll life.
• Big diameter corrugating rolls (with diameters of Φ478/Φ478) ensure perfect flute formation at high speed, made of high strength chrome molybdenum alloy steel, and induction hardened with hardness up to HRC55~60.
• The temperature of corrugating rolls, pressure roll and pre-heating rolls for both liner and medium is detected by thermocouple with indication.
• Automatic speed-related spraying volume can be adjusted by proportional valve to accommodate different temperature and moisture content.
• Advanced precision linear actuator with built in feedback for most accurate gap placement.
• Retractable glue unit eases machine maintenance and prolongs it life.
• Self-circulating glue supplying system with automatic glue level control by level switch. Motorized glue dam adjustment for different web widths.
• Automatic speed-related glue quantity adjustment with digital display. Manual fine adjustment is also available.
• Automatic web break detection function.
• Tungsten Carbide coated corrugating rolls.

Technical Data

• Size: 2000, 2200, 2500, 2800 (mm)
• Roll Chang Time: 10~15min
• Design Speed: 380m/min
