Features

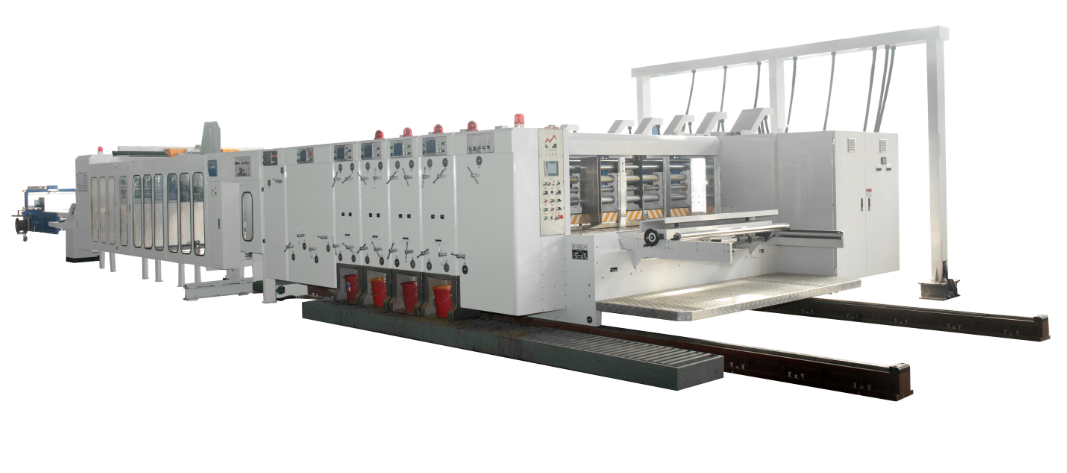

1. YKMB II+ Printer Slotter with Die-cutter
- PLC control, touch screen for each unit with status display
- Manual gap adjustment via self-locking gear boxwith dials readout.
- Automatic phase zero-reset device and recover, reducing testing paper waste
- Planetary gearing mechanism for easy register adjustment CW or CCW within 360 degree with double control ways, touch screen and button control.
- Low ink level alarm device
- Rubber wrapped scoring wheel, reducing sheet damage and easing maintenance.
- Anvil roll automatic hydraulic lateral movement mechanism.
- Anvil roll automatic mechanical longitudinal differential mechanism.
- Equipped with speed-difference compensation and anvil blanket-leveling mechanism.
2. ZXE250 In-line Folder Gluer
- Down-fold mode, it can be combined with top printing machine to finish case forming.
- Individual feeding unit is optional for offline working.
- Extrusion system for standard gluing unit.
- Pneumatic conveying belt tensioning device is controlled by precision pressure-reducing valve device, which ensures constant belt tension.
- Automatic carton-counting and batching is realized by patented ratchet reversing mechanism.
- Design speed: 250 sheets/min
- Folding precision: ±3mm
- Adhesive: PVA
